Newton2809 Stainless Steel Decorative Wire Mesh Panels

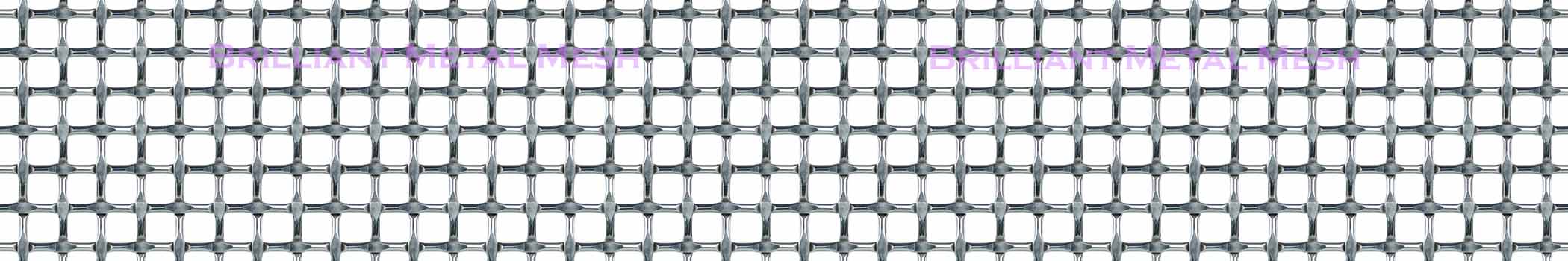

Newton-2809 Decorative Wire Mesh Panels are made of woven stainless steel wire with a flat surface. It has a square opening and the opening area is 58%, providing users with a variety of opening options.
Newton-2809 is not only suitable for cabinet doors, but also for bookcases, interior windows, room partitions, restaurant space partitions, bar counters, etc.
Specifications
- Open area: 58%
- Material: 304 stainless steel wire
- Wire diameter: 2.8mm (0.11 in.)
- Opening: 9mm (0.354 in.)
- Weight: 9.5kg/m2 (1.95 lb/ft2)
Technical Specification
Technical specifications of Newton-2809 Decorative Metal Mesh
| Product Name | Wire Diameter (a), mm (in) | Opening (b), mm (in) | Overall thickness, mm (in) | Open Area, % | Approximate Weight, kg/m2 (lb/ft2) |
| Newton2809 | 2.8 (.11) | 9 (.354 ) | 3.4 (.134) | 58 | 9.5 (1.95) |
| Newton2509 | 2.5 (.098) | 9 (.354) | 3.2 (.126) | 61 | 6.7 (1.37) |
| Newton2310 | 2.3 (.09) | 10 (.394) | 3.0 (.118) | 66 | 5.7 (1.17) |
Product Details
