Planck3209 | Decorative Lock Crimp Woven Wire Mesh Sheet

stainless steel decorative lock crimp wire mesh

Planck3209 Decorative Lock Crimp Woven Wire Mesh Sheet

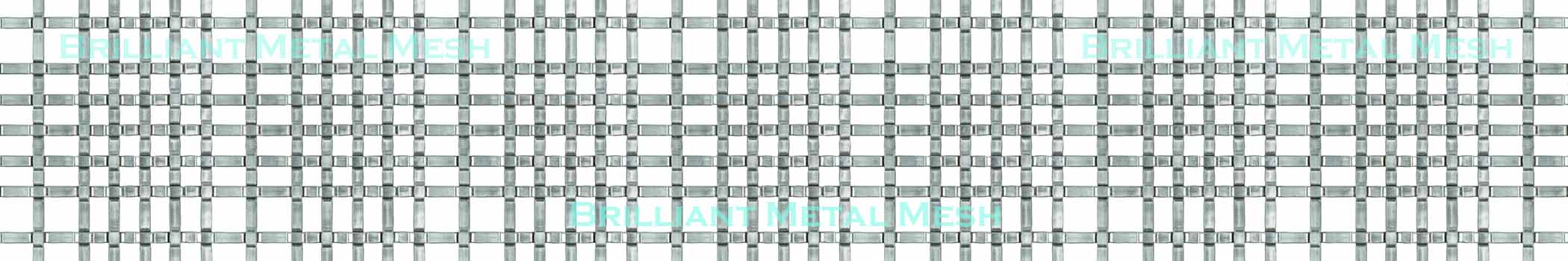

Planck-3209 is a decorative lock crimp woven wire mesh sheet with rectangular holes and square holes. Lock crimp structure makes the openings stable and not easy to deform.

Specifications

Open area: 56%
Material: 304 stainless steel wire
Flat wire size: 3.2 x 1.4 mm (0.126 x 0.055 in.)
Overall thickness: 2.8mm (0.11 in.)
Weight: 7.4 kg/m2 (1.52 lb/ft2)

Technical Specification of Planck-3209: Decorative Lock Crimp Wire Mesh Sheet

Specifications of Planck-3209: Decorative Lock Crimp Wire Mesh Sheet

Product Name	Planck-3209
Material	SS 304/316
Wire Size (d), mm (in)	3.2 (.126)
Opening (O1), mm (in)	4.8 (.189)
Opening (O2), mm (in)	9 (.354)
Overall thickness, mm (in)	3 (.118)
Open Area	56 %
Max Width	1.2m (4 ft)
Max Length	2.8m (9 ft)
Approx. Weight, kg/m2 (lb/ft2)	7 (1.43)

Product Details

Product photos are photographed by Brilliant Metal Mesh. Due to shooting light and production batches, the actual color of the product and the color of the picture may be slightly different.

stainless steel lock crimp weave wire mesh

stainless steel crimped decorative wire grille

decorative stainless steel wire mesh screen panels

Available in Various Finishes

More about Metal Finish.
