Benjamin Franklin (Formerly DWM-5)
Franklin1803 Decorative Stainless Steel Wire Mesh Screen

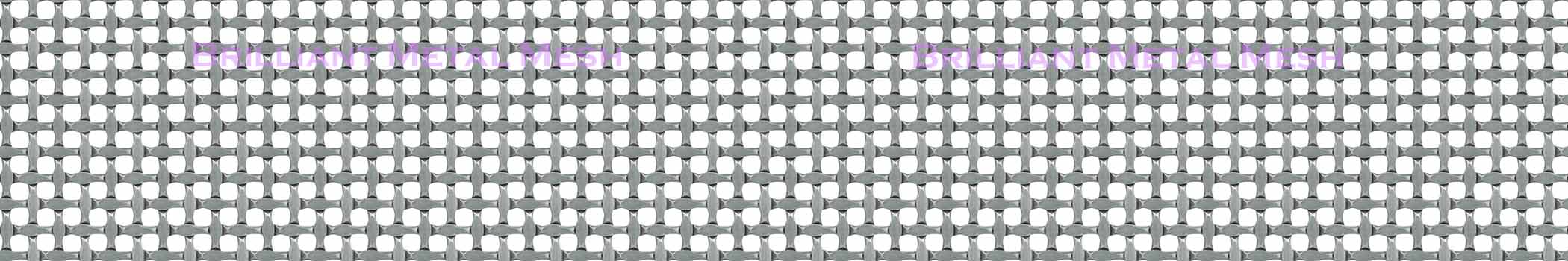

Franklin1803 Decorative Stainless Steel Wire Mesh Screen is a architectural material with round openings woven from stainless steel flat wire. Its opening rate is 43%, the total thickness is 1.9mm (0.075 in.), and the surface is bright and smooth. The alternation of oval cross-section steel wires and circular openings creates a unique pattern. Franklin1803 has a variety of secondary surface treatments to choose from, such as Antique brass, antique copper, spray painting, titanium plating, powder coating, etc.
Technical Specification
Specifications of Franklin Series Decorative Wire Grilles
| Product Name | Franklin-1803 |
| Material | 304/316 Stainless Steel |
| Wire Diameter (a), mm (in) | 1.8 (.071) |
| Opening (b), mm (in) | 3.4 (.134) |
| Overall thickness, mm (in) | 1.9 (.075) |
| Open Area | 43 % |
| Max Width | 1.2m (4 ft) |
| Max Length | 2.8m (9 ft) |
| Approx. Weight, kg/m2 (lb/ft2) | 5.94 (1.22) |
Product Details
