Pascal415 Decorative Intercrimp Wire Mesh Panel

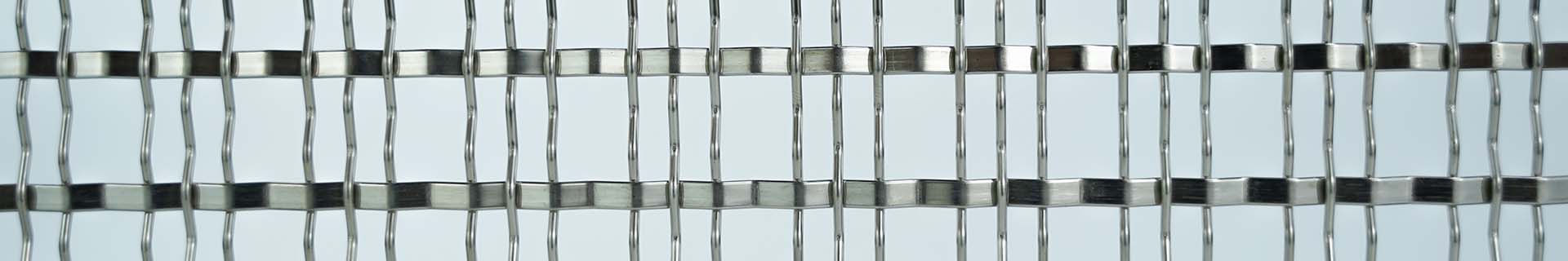

Pascal415 Decorative Intercrimp Wire Mesh Panel is woven from pre-crimped flat and round wires. Each unit opening is composed of 3 round wires and 1 flat wire, forming a unique opening pattern.
Specifications
- Open area: 62%
- Material: Stainless steel wire
- Round wire diameter: 1.45mm (0.297 in.)
- Flat wire diameter: 4 x 1 mm (0.158 x 0.039 in.)
- Opening: 3×5.6 mm (0.118×0.22 in.)
- Overall thickness: 3.3mm (0.13 in.)
- Weight: 3.66kg/m2 (0.75 lb/ft2)
Technical Specification
Specifications of Pascal-415: Decorative Architectural Intercrimp Wire Mesh Panels
| Product Name | Pascal-415 |
| Material | SS 304/316 |
| Wire Size (d1), mm (in) | 1.45 (.057) |
| Wire Size (d2), mm (in) | 4 (.157) |
| Opening (O1), mm (in) | 4 (.157) |
| Opening (O2), mm (in) | 10 (.394) |
| Opening (O3), mm (in) | 15 (.59) |
| Overall thickness, mm (in) | 2.8 (.11) |
| Open Area | 63 % |
| Max Width | 1.2m (4 ft) |
| Max Length | 2.8m (9 ft) |
| Approx. Weight, kg/m2 (lb/ft2) | 3.7 (.76) |
Product Details
