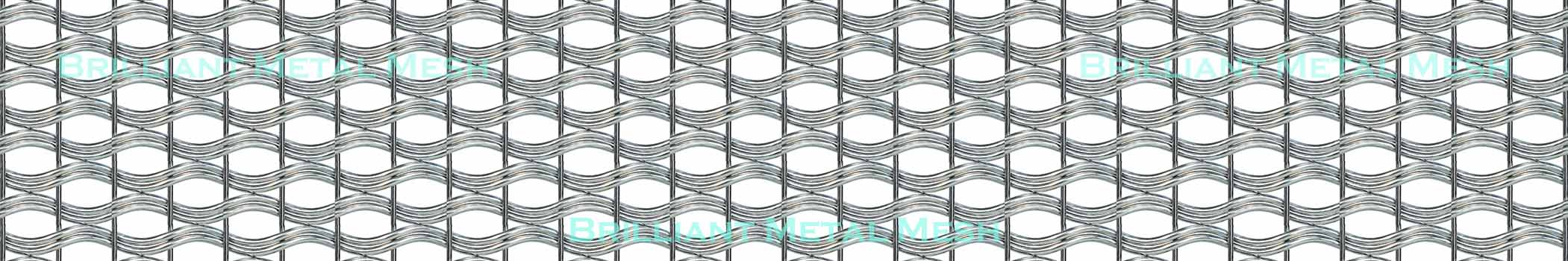

Architectural stainless steel spiral wire mesh panel is a type of wire mesh that is specifically designed for architectural and decorative applications. It is made from high-quality stainless steel wires that are woven or welded together to form a mesh structure. The stainless steel material provides durability, corrosion resistance, and a sleek, modern appearance.
Technical Specifications of Meitner Series Wave Decorative Wire Mesh
| Product Name | Meitner-2816 |
| Material | 304/316 Stainless Steel |
| Wire Size (d1) | 1.8mm (.071 in) |
| Wire Size (d2) | 2.8 mm (0.11 in) |
| Opening (O1) | 16 mm (.63 in) |
| Opening (O2) | 9 mm (.354 in) |
| Overall thickness | 7.3 mm (.287 in) |
| Open Area | 51% |
| Max Width | 1.2m (4 ft) |
| Max Length | 2.8m (9 ft) |
| Approx. Weight | 11.6 kg/m2 (2.38 lb/ft2) |
